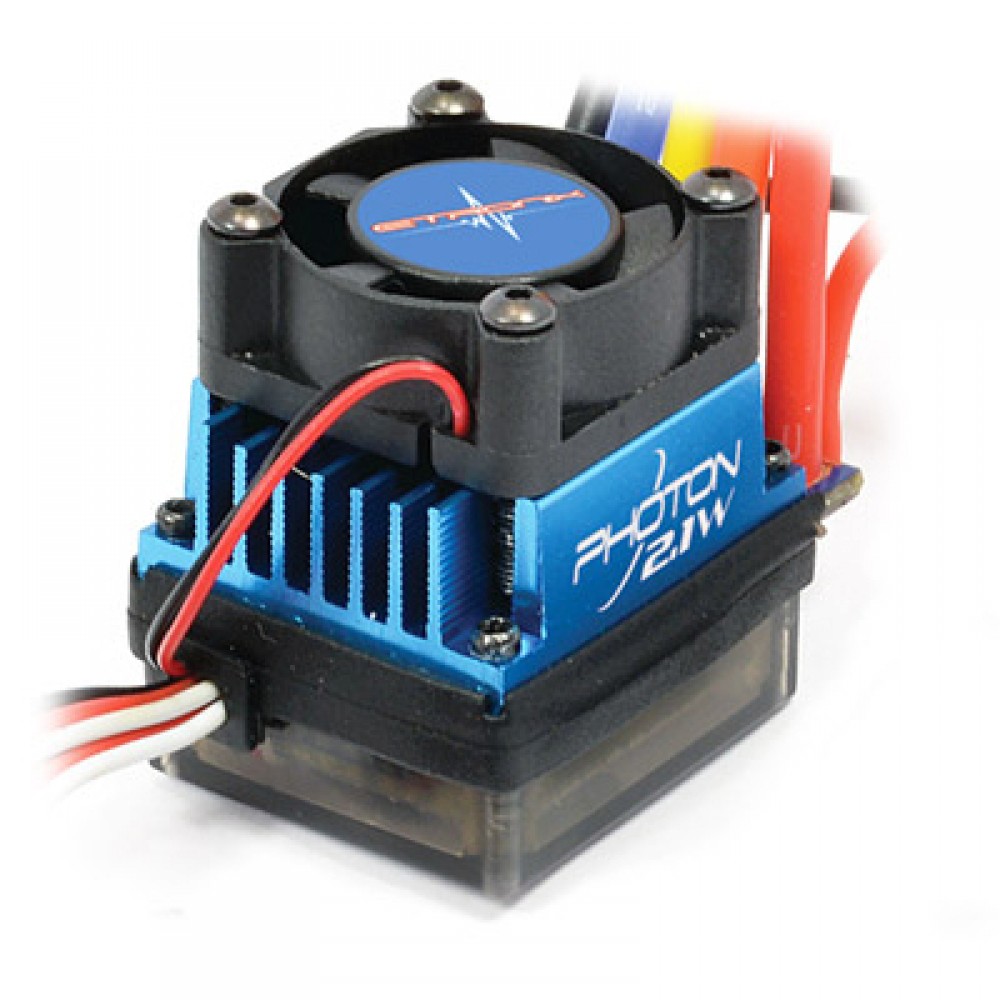

Etronix ET0125FTX Photon 2.1W 45AMP Brushless ESC FTX Spec
A replacement ESC wired specifically for FTX cars.
With systems available ranging from 45A through to 120A there is something within the Photon range for every 1/10th application. With the additional programmable set up card (ET0107) the user can finely tune ten different parameters within the ESC to suit their particular needs. (available separately)
When choosing your new ESC/ESC and motor combo, please take note of the relevant motor and battery cell count limits.
ESC MOTOR LIMIT:
2S Battery - 4350KV
3S Battery - 2950KV
4S Battery - Not Compatible
SPEC CHECK:
Splashproof
2-3S Lipo
5-10S NiMH/NiCd
2A 6V BEC Output
4 Pole sensorless brushless motor
45A Constant current
260A Burst current
Dimensions 45x33x37mm (without fan)
Weight 90g
